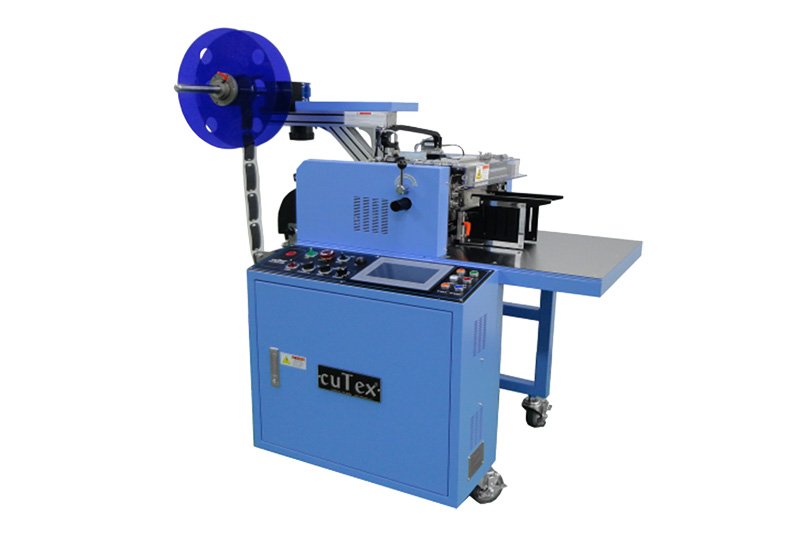

Film and Label Cutting machine 600mm CUTEX TFC-460K

Optionen

• cutting type: cold-cutting
• max. cutting width: 450mm (optional 600mm)
• max. speed: 270 cuts/min (at 50mm cutting length)
• range of cutting length: 0,1mm~10meter
• range of stacking lenght: 30-250mm
• weight: ca. 180kg
• accuracy: Exact cutting position due to mark sensor. The sensor can be teached to various backgrounds and colors. A stepping motor ensures a precise material feeding.
• cutting type: Cutting is precise due to two cold-cutting blades (much like scissors). Blades are durable because they are constructed from high-speed steel (HSS).
• pre-feeder: Sensor controlled pre-feeder is included in this cutter. This will enhance the speed and accuracy of the cutting process.
• stacker: Cut pieces are stacked. Maximum stacking height 140mm.
• automatic operation: Easy operation and changing of cutting parameters by using touch screen panel
• other: machine can be run without cutting mark sensor, machine is mounted on stable stand with wheels
• optional: anti-static device (ionisation bar), auto-stop sensor on material end, sensor for transparent material, slitting and winding device for scrap, different cutting width available, linking to high speed pressing and printing machine (Thompson)
